Wire Braided Hydraulic Hose
OEM/ODM Services：
Custom Manufacturing
One-on-One Support
Design & Precision
Contact us for a personalized quote！
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Information

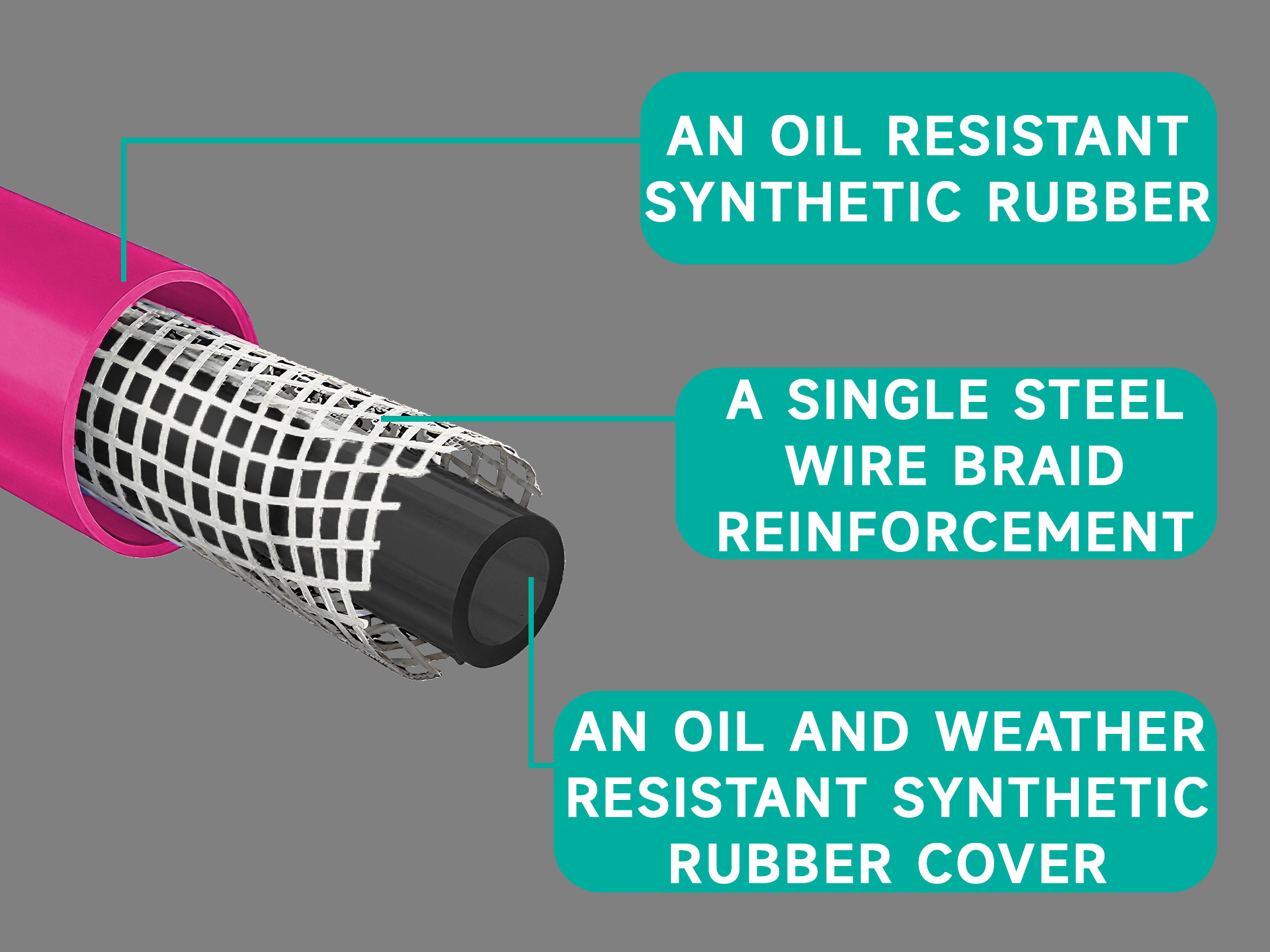

ONE-STEEL WIRE REINFORCED RUBBER COVERED HYDRAULIC HOSE
|
SIZE |
I.D. |
W.D. |
O.D. |
W.P. |
B.P. |
W.T. |
|||||
|
MM |
INCH |
MIN |
MAX |
MIN |
MAX |
MAX |
MPa |
PSI |
MPa |
PSI |
Kg/M |
|
6.3 |
1/4" |
6.1 |
6.9 |
9.6 |
10.8 |
13.5 |
22.5 |
3260 |
90 |
13050 |
0.24 |
|
8 |
5/16" |
7.7 |
8.5 |
10.9 |
12.1 |
14.5 |
21.5 |
3120 |
86 |
12407 |
0.26 |
|
10 |
3/8" |
9.3 |
10.0 |
12.7 |
14.5 |
16.9 |
18 |
2610 |
72 |
10440 |
0.29 |

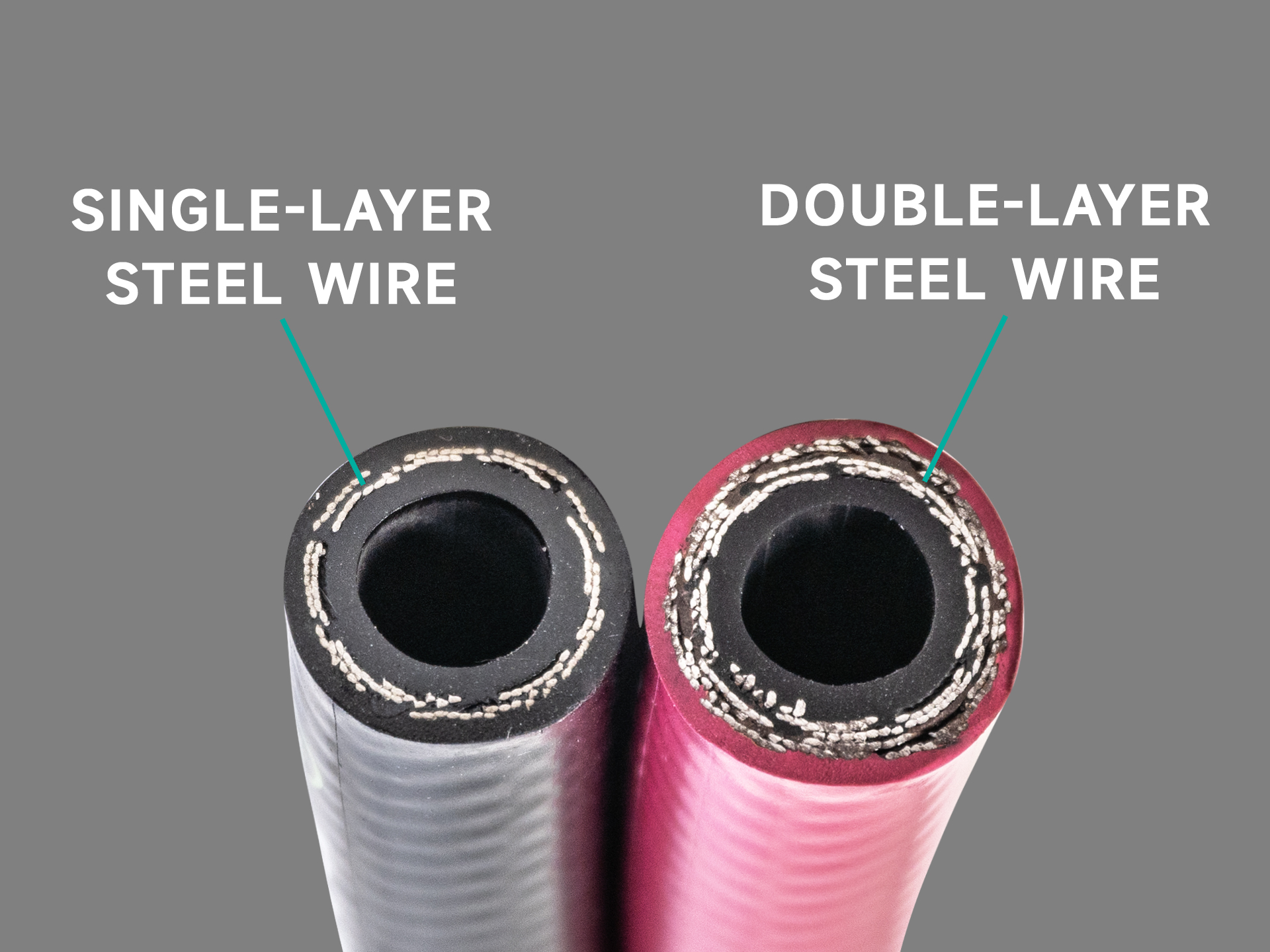

TWO-STEEL WIRE REINFORCED RUBBER COVERED HYDRAULIC HOSE
Two layers of steel wire
|
SIZE |
I.D. |
W.D. |
O.D. |
W.P. |
B.P. |
W.T. |
|||||
|
MM |
INCH |
MIN |
MAX |
MIN |
MAX |
MAX |
MPa |
PSI |
MPa |
PSI |
Kg/M |
|
6.3 |
1/4" |
6.1 |
6.9 |
10.6 |
11.7 |
14.0 |
40.0 |
5800 |
160 |
23200 |
0.30 |
|
8 |
5/16" |
7.7 |
8.9 |
12.1 |
13.3 |
15.5 |
35.0 |
5075 |
140 |
20300 |
0.34 |
|
10 |
3/8" |
9.3 |
10.0 |
14.4 |
15.6 |
17.8 |
17.8 |
4785 |
132 |
19140 |
0.42 |
